Permanent magnet tunnel thruster

Reliable, efficient and low through life cost

The TT-PM is engineered and built with focus on reliability and efficiency. The core mechanical technology is well proven and verified through rigorous design processes, quality control, testing and verification.

Permanent magnet tunnel thruster

The Permanent magnet tunnel thruster (TT-PM) is the latest tunnel thruster design from Rolls-Royce and has been engineered with reliability and through life costs as the focus. Using permanent magnet motor technology increases efficiency and makes the installation more compact, only the variable frequency drive unit is housed in the thruster room, freeing up space on board.

It also simplifies maintenance as the patented mount means units can be removed and replaced without drydocking. PM thrusters are currently available in two sizes with powers of 1,000 and 1,600 kW. These thrusters have been developed for the most demanding applications such as DP.

View all

All programme updates

WATCH

View all

Thruster type	TT PM 1600	TT PM 2000
Prop. dia (mm)	1600	2000
Tunnel dimensions (mm)	2180	2600
Thruster unit weight (kg)	7250	12217
Connections & mounts weight (kg)	1957	2540
Total dry weight (kg)	11730	18318
Power MCR (kw)	1000	1600
Max thrust (kN)	134	211
Propeller type	Mono FP	Mono FP
Hull mounting	8 x rubber bushings	8 x rubber bushings

All data subject to change without prior notice

Efficient and space saving PM technology
Fast response times to full power
Rugged design with high reliability
Equal thrust in both directions
Patented resilient mounting system reduces noise and vibration, simplifies tunnel fabrication and removal/installation
Oil filled stator for superior cooling and protection
Robust centre shaft carries all propeller loads

TT-PM thrusters are resiliently mounted in the tunnel to minimise noise and vibration. Installation and removal can be carried out without drydocking the vessel.

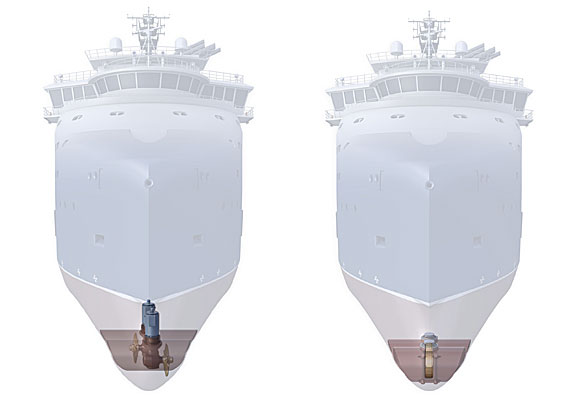

These two pictures illustrate the significant space savings delivered by PM technology.

Due to its symmetric design the permanent magnet tunnel thruster provides increased flexibility for the ship designer to achieve a more optimal and space-saving installation.
